Specifications

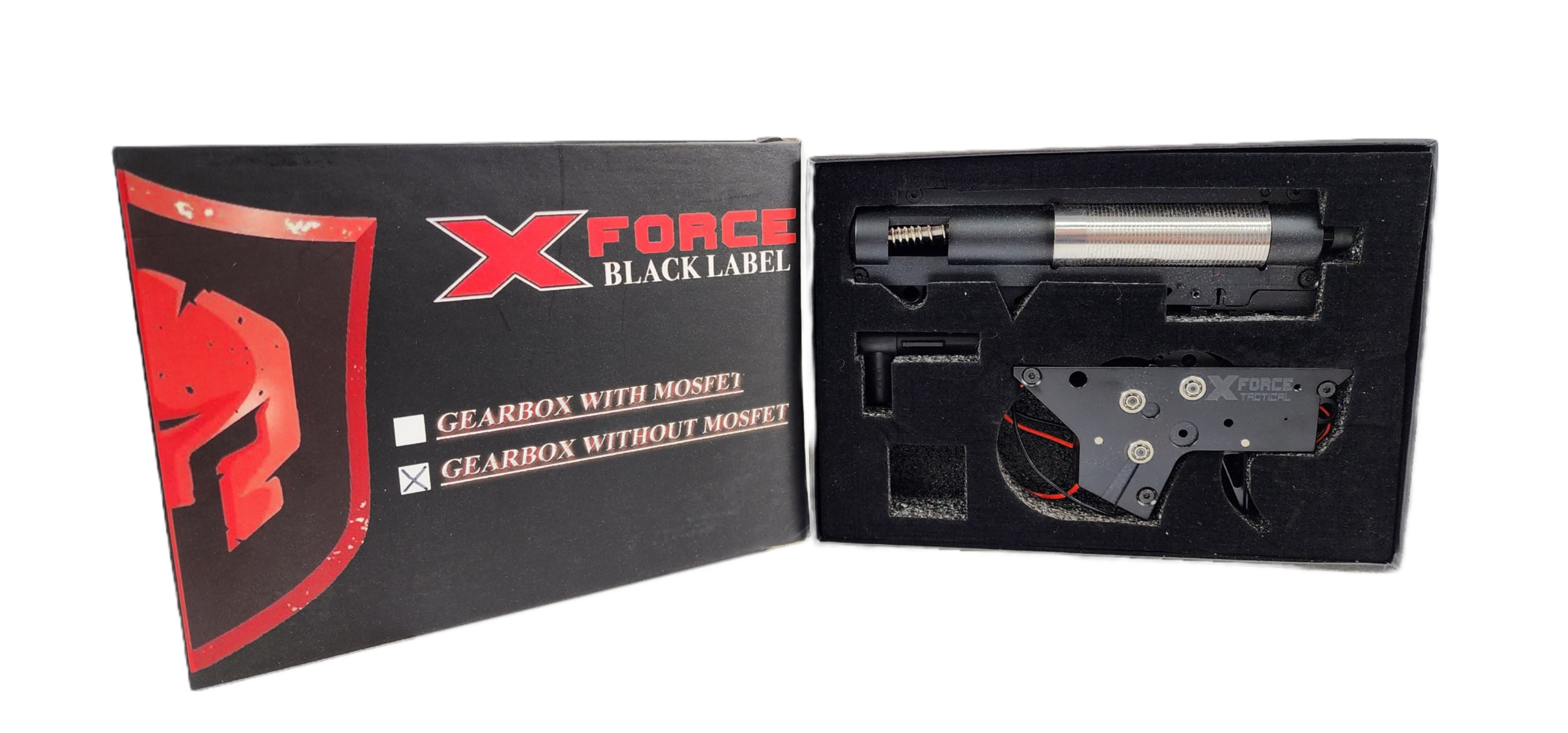

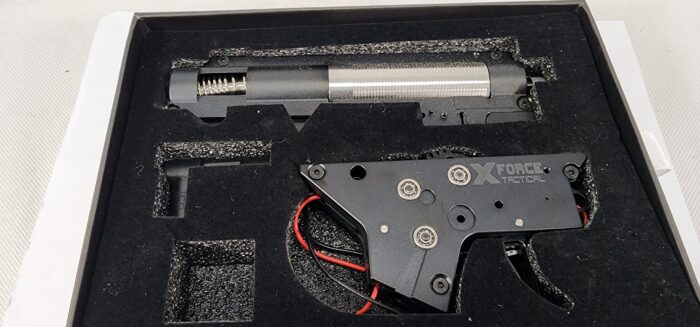

The latest from the Xforce Black Label brand to hit the market is a fully built CNC V2 gearbox.  Featuring a full CNC 7075 Aluminium  split shell capable of much more stress without the flex and super lightweight. CNC Metal gears with an 18:1 ratio for high torque, capable of powering a stronger spring for those high FPS builds. Heavy duty wiring for high amp capacity. High quality 14 teeth SHS nylon piston with metal rack and lightweight alloy piston head and of course a metal CNC trigger. We’ve included a m100 spring to give you around 280-300 fps, which we found to be a good sweet spot for a reliable and accurate blaster.  Let’s not forget for those that love the option of binary trigger fire this comes with a programable T238 DTU V1.9  mosfet.

XForce Black Label V2 CNC Gearbox Features:

• CNC 7075 Aluminium shell
• M100 spring
• Alloy spring retainer
• SHS 14 teeth piston with metal rack
• Metal piston Head
• Metal Cylinder head
• Metal nozzle
• T238 DTU V1.9  mosfet
• XT30 plug
• CNC metal 18:1 gears
• CNC Metal Trigger
• 8 mm Bearings
• Shimmed
• Nylon T-piece

T238 DTU V1.9  mosfet Features:

• •  Supports up to 11.1V batteries
  •  Binary trigger. Put the selector in semi-auto position, pull and hold the trigger for 3 seconds will change the semi-auto function into binary trigger shooting mode.
  • Block-up protection. When gearbox Block-up occurs, the system stops working and emits a ‘beep’ sound. Please check the  gearbox immediately by powering off.
  • Auto-loading priming function is designed for gel ball blaster magazines with motor inside, when changing the magazine, the magazine motor will run automatically for 0.5 second.
  • Increase rate of fire.This module allows to increase rate of fire, the stability of single-shot and make batteries have a higher durability.
  • Active braking. The energy that support the active brake function comes from the inertia of motor, stop the piston without delay. The effect of active brake is significant on high torque motor
  • Prevent gears from over-rotating. The active function prevents the over-spin of gears, this solves the issue that a single shot becomes full auto under high voltage. Meanwhile, the spring is fully released in semi-auto mode and parts in gearbox are not under strain, thus increase the life cycle of gearbox and parts.
  • DTU overheat protection. When the DTU is overheated, after the trigger is pulled, the motor will give a beep prompt until it is automatically restarted after cooling.

This is the ultimate high performance gearbox. Whether you’re an enthusiast looking at a full build or a newbie just wanting something strong and reliable with potential to upgrade in the future, the Xforce Black Label V2 gearbox is a great place to start.

Please remember to check all local laws regarding the usage and ownership of gel blasters in your particular State or Territory.

Use protective eyewear at ALL times as the incorrect usage can lead to eye damage.

Gel blasters must be concealed during transport and used in designated areas.
