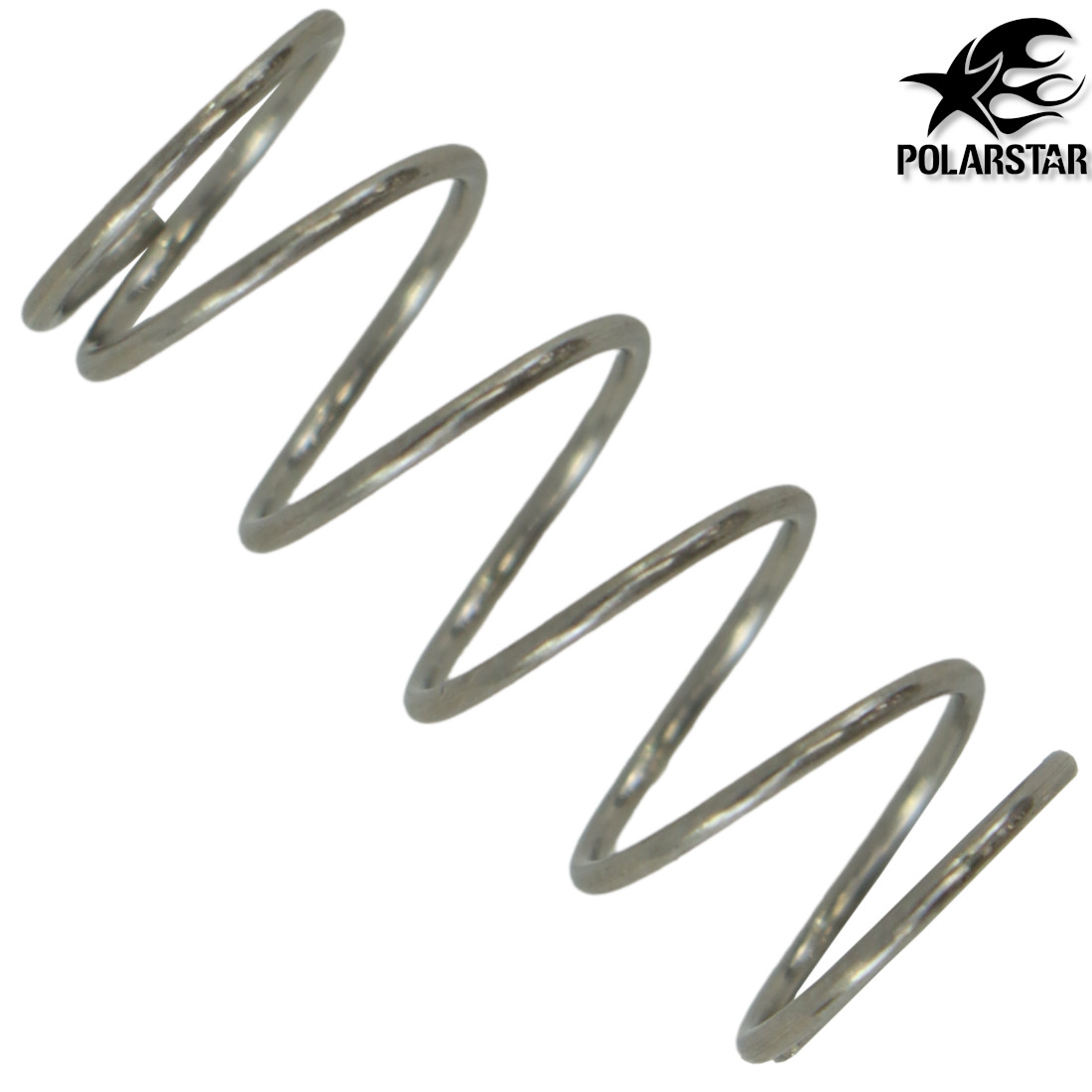

PolarStar Light Nozzle/Poppet spring for FE/F2/Kythera

PolarStar Light Nozzle/Poppet spring for FE/F2/Kythera

The PolarStar Light Nozzle/Poppet Spring for FE/F2/Kythera is a small but useful genuine replacement component for maintaining or fine-tuning compatible PolarStar HPA engines. PolarStar offers both light and heavy spring options, allowing the spring force within the system to suit different operating requirements.

Light Spring for Lower-Pressure FE and F2 Setups

PolarStar supplies the Fusion Engine and F2 with the heavier spring as standard. However, replacing it with this Light Spring can help equalise the force balance when operating towards the lower end of the system’s pressure range. PolarStar specifically states that this can improve feeding and general function under these conditions.

This characteristic can be particularly useful when tuning an HPA system where reduced operating pressure or lighter loading force is desirable. Rather than changing major engine components, the spring provides a simple mechanical tuning option.

On the PolarStar F2, the nozzle uses spring-forward bias to produce a consistent loading force regardless of operating pressure. PolarStar confirms that the F2 shares its spring with the Fusion Engine and supports both light and heavy versions to alter that loading force.

Standard Spring for the PolarStar Kythera

The situation differs slightly with the PolarStar Kythera. While the light spring acts as an alternative to the standard heavy spring in the FE and F2, PolarStar installs the Light Spring as the standard spring in the Kythera.

Therefore, this part is also useful as a direct replacement for a worn, damaged or misplaced original Kythera spring. PolarStar separately lists the Heavy Spring as an alternative spring supplied with the Kythera system.

Genuine PolarStar Replacement and Tuning Component

Using the correct spring helps preserve the intended mechanical relationship between the nozzle, poppet and other internal components of the applicable engine. Moreover, having both light and heavy springs available gives owners another method of fine-tuning their HPA setup without altering permanent components.

For compatible Gel Ball HPA conversions, the Light Spring may also be useful when tuning FE or F2 systems towards lower operating pressures. However, actual Gel Ball feeding and performance will depend on the complete build, nozzle setup, gel size, magazine feeding and system tuning. PolarStar specifically confirms that the F2 platform itself can be configured for Gel Ball use.

Why Choose the PolarStar Light Nozzle/Poppet Spring?

This spring provides an inexpensive and straightforward way to replace an original spring or alter the spring force within a compatible PolarStar system.

For FE and F2 owners, it adds another tuning option when running towards lower operating pressures. For Kythera owners, it provides a replacement for the standard factory-installed light spring.

Most importantly, it is a genuine PolarStar component intended specifically for the FE, F2 and Kythera platforms, rather than a generic spring substituted on size alone

Installation Note

Before servicing any HPA engine, fully disconnect and depressurise the air system.

Install the spring in the correct position for the applicable PolarStar engine and inspect surrounding components for wear or damage during servicing. Because spring choice forms part of overall HPA tuning, settings that work well with the Heavy Spring may require adjustment after changing to the Light Spring.

For Gel Blaster conversions in particular, test feeding and cycling carefully after installation because magazine performance, nozzle alignment, gel characteristics and operating pressure can all influence the final result.

Whether you’re replacing the original spring in a Kythera or fine-tuning a Fusion Engine or F2 for lower-pressure operation, the PolarStar Light Nozzle/Poppet Spring provides the correct genuine PolarStar component for the job. Its cross-platform compatibility also makes it a useful spare to keep on hand for PolarStar HPA maintenance and tuning.

Check out the Whole PolarStar range here.

Compatibility
PolarStar Fusion Engine

Compatible. The Fusion Engine normally uses the Heavy Spring as standard. This Light Spring serves as an alternative when lighter spring force is required, particularly for operation towards the lower end of the system’s pressure range.

PolarStar F2

Compatible. PolarStar’s F2 uses a spring-biased-forward nozzle and shares its spring design with the Fusion Engine. Light and heavy springs allow the nozzle loading force to be adjusted.

PolarStar Kythera

Compatible. Unlike the FE and F2, the Light Spring is the standard spring fitted to the Kythera. The Heavy Spring represents the alternative spring option for this platform.

Important: This listing is for the spring only. It does not include a nozzle, poppet assembly or complete engine
